Project Title:
Supply and Installation of Lightning Protection System based on NFPA780 & BNBC Standard.

Client:

Pacific Knitex Ltd. (Pacific Jeans Group)

Location:

Salimpur, Akbarshah, Chattagram

Project Duration:
April, 2023 to June, 2024

Project Value:
5.58 Million BDT.

Scope of Work:
Supply, installation, testing, and commissioning of conventional lightning protection system for entire factory complex. Approximate 4.5 thousand meter of copper conductor, 178 or air termination device, 112 Lightning elevation pole, 40 set of earthing system was installed. After completing the installation prepare the as-built design, measuring the earth resistance, commissioning the site was included in this project.

🔧 Key Deliverables

• Proposed Design for LPS as per NFPA780 & BNBC

• Installation of Air-Termination Network.

• Installation of Down-conductors.

• Installation of Earthing System.

• Earthing resistance test and commissioning of site.
• Preparing the as built design and other documents.

🛠️ Technical Specifications

• Type of Lightning Protection System : Conventional Meshed Conductor
• Lightning Protection Standard:              BNBC2020 & NFPA780
• Major of Materials in used :                     Copper, Brass, SS-Steel, & GI
• Earthing Type :                                              Conventional Copper Electrode.

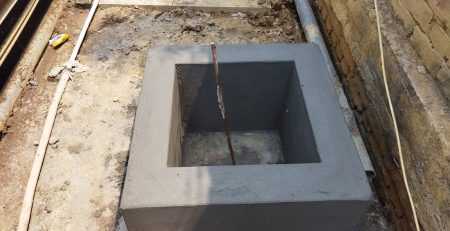

• Earthing Inspection Pit:                            FRP Pit with Cover
