Importance of Residual Current Device (RCD) in Household Electrical Wiring System in Bangladesh

Electricity has become an indispensable part of modern life. From lighting and fans to air conditioners, refrigerators, water pumps, and kitchen appliances, every household in Bangladesh depends on electricity. However, improper electrical installations, damaged wiring, poor earthing, and faulty appliances cause hundreds of electrical accidents every year. One of the most effective ways to protect human life from electrical shock is by installing a Residual Current Device (RCD) in the household electrical distribution board. In many developed countries, installing an RCD is mandatory for residential electrical systems. Unfortunately, many homes in Bangladesh still rely only on conventional circuit breakers (MCBs), which cannot provide adequate protection against electric shock.

---

What is a Residual Current Device (RCD)?

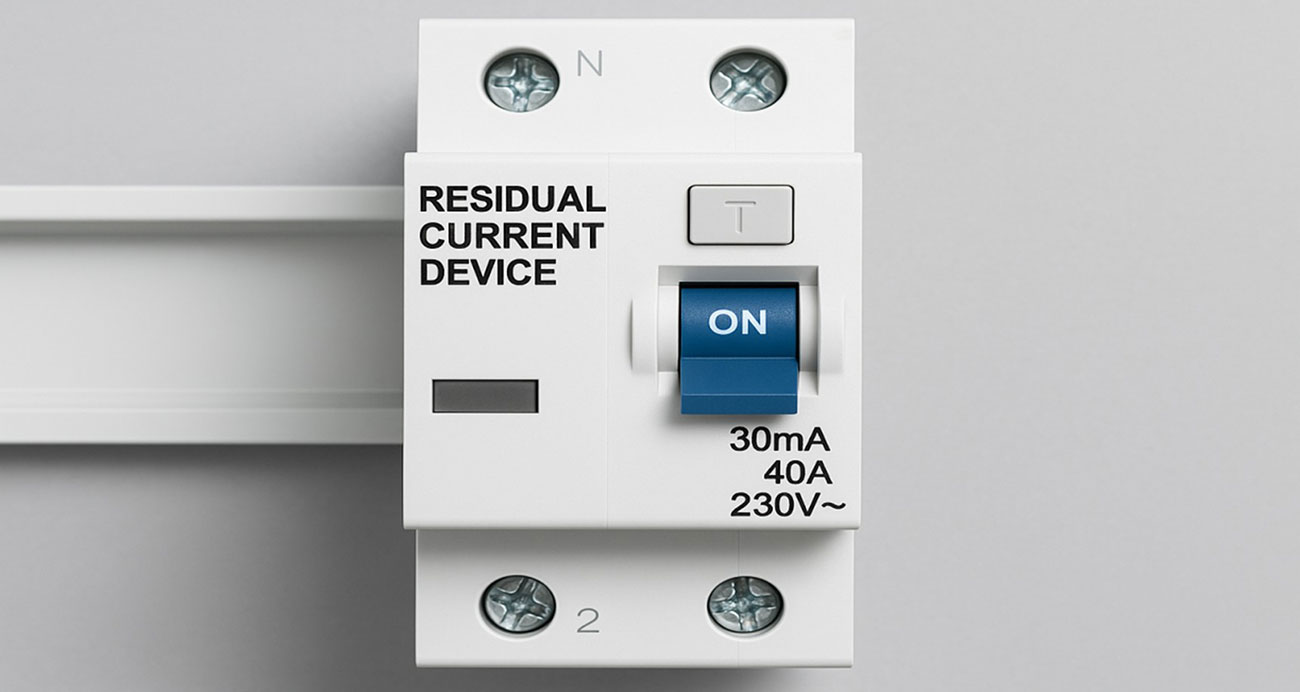

A Residual Current Device (RCD) is a safety device that continuously monitors the current flowing through the live (phase) and neutral conductors. Under normal operating conditions:

• Current flowing through the phase equals the current returning through the neutral.
• The difference between the two currents is zero.

If an electrical fault occurs and some current leaks through a person's body or another path to earth, the RCD detects the imbalance and disconnects the power supply within milliseconds. Typical residential RCDs trip when the leakage current reaches 30 mA (0.03 A), providing effective protection against fatal electric shocks.

---

Why Bangladesh Needs RCD Protection

Bangladesh faces several electrical safety challenges:

• Poor quality electrical wiring
• Aging household electrical installations
• Damaged insulation
• Moisture during the rainy season
• Water leakage inside buildings
• Improper earthing systems
• Use of counterfeit electrical accessories
• Overloaded circuits
• Unqualified electrical work

These conditions significantly increase the risk of electrical shock and fire. Installing an RCD greatly reduces these risks.

---

How an RCD Saves Human Life

Suppose a washing machine develops an internal insulation fault. The metal body of the washing machine becomes energized due to leakage current. When a person touches the appliance:

• Current begins flowing through the person's body to earth.
• Even a current of 50–100 mA can cause ventricular fibrillation and may be fatal.
• Before the current reaches a dangerous duration, the RCD detects the leakage.
• The RCD disconnects the supply within approximately 20–40 milliseconds.

Because the exposure time is extremely short, the risk of fatal injury is dramatically reduced.

---

Why an MCB Cannot Protect Against Electric Shock

Many homeowners believe that a Miniature Circuit Breaker (MCB) provides complete electrical protection. This is a dangerous misconception. An MCB is designed to protect:

• Electrical cables
• Wiring
• Equipment

It trips only when:

• An overload occurs
• A short circuit occurs

For example, if a person receives an electric shock and only 30 mA flows through the body:

• The current is far below the trip rating of a typical 16 A or 20 A MCB.
• The MCB will not trip.
• The person may continue receiving the electric shock.

An RCD, however, is specifically designed to detect this small leakage current and disconnect the power almost instantly.

---

Benefits of Installing an RCD

Installing an RCD provides numerous advantages:

1. Protects Human Life

The primary function of an RCD is to reduce the risk of fatal electric shock.

---

2. Prevents Electrical Fires

Leakage currents caused by damaged insulation can generate heat inside walls and ceilings. An RCD detects these leakage currents before they become serious enough to start a fire.

---

3. Protects Children

Children are naturally curious and may accidentally touch electrical appliances or sockets. An RCD provides an additional layer of protection.

---

4. Improves Safety in Wet Areas

Bathrooms Kitchens Laundry rooms Outdoor electrical outlets Water greatly reduces body resistance, increasing shock severity. RCD protection is especially important in these locations.

---

5. Detects Hidden Electrical Faults

Many insulation failures are not visible. An RCD identifies earth leakage before it becomes dangerous.

---

6. Reduces Property Damage

Electrical leakage can damage:

• Appliances
• Electronic equipment
• Wiring insulation

Early disconnection minimizes damage.

---

Where Should RCDs Be Installed?

For maximum safety, RCD protection should be provided for:

• Main incoming residential supply
• Socket outlet circuits
• Bathroom circuits
• Kitchen circuits
• Water heater circuits
• Washing machine circuits
• Outdoor lighting
• Garden sockets
• Water pump circuits
• Air conditioner circuits
• Electric geysers

---

Choosing the Right RCD

For most residential installations in Bangladesh:

Parameter	Recommended Value
Rated Voltage	230/400 V
Rated Current	40 A, 63 A, or 100 A
Sensitivity	30 mA
Type	Type A (preferred) or Type AC for simple resistive loads
Poles	2-Pole (single-phase), 4-Pole (three-phase)

---

Importance of Proper Earthing

Although an RCD can operate even without an earth connection, proper earthing remains essential because it:

• Provides a low-resistance fault path.
• Improves equipment safety.
• Enhances surge protection.
• Helps protective devices operate correctly.
• Reduces touch voltage during faults.

For complete electrical safety, an RCD should always be used together with a properly designed earthing system.

---

Common Misconceptions About RCDs

"My MCB already protects me."

False. MCBs protect against overloads and short circuits, not against dangerous leakage currents through the human body.

"Earthing alone is enough."

False. Earthing helps clear faults but cannot disconnect the supply as quickly as an RCD when a person is shocked.

"RCDs trip unnecessarily."

Frequent tripping usually indicates a genuine earth leakage problem that should be investigated rather than ignored.

---

Best Practices for Homeowners

• Install a 30 mA RCD for residential circuits.
• Test the RCD monthly using the built-in TEST button.
• Replace damaged wiring immediately.
• Ensure proper earthing of the entire installation.
• Use certified electrical accessories.
• Hire qualified electricians for installation and maintenance.
• Inspect the electrical system periodically, especially in older homes.

---

Conclusion

Electrical accidents are preventable. A Residual Current Device (RCD) is one of the most important safety devices that can be installed in a home. While conventional circuit breakers protect electrical equipment, only an RCD is designed to protect people from life-threatening electric shocks caused by earth leakage. Given the growing use of electrical appliances, frequent exposure to moisture, and the prevalence of aging wiring in many homes across Bangladesh, installing an RCD should no longer be considered optional—it should be regarded as a fundamental requirement for every household. A small investment in an RCD today can protect your family, your property, and most importantly, save lives.

---

Frequently Asked Questions (FAQs)

Q1: Is an Residual Current Device (RCD) in Bangladesh? Currently, RCD installation is not mandatory in all residential buildings, but it is highly recommended as a critical electrical safety measure. Q2: Does an RCD replace an MCB? No. An RCD protects against earth leakage and electric shock, while an MCB protects against overloads and short circuits. Both devices should be installed together. Q3: How often should an RCD be tested? Press the TEST button at least once every month. If it fails to trip, replace it immediately. Q4: Can an RCD prevent electrical fires? Yes. By detecting earth leakage currents caused by damaged insulation or faulty equipment, an RCD can disconnect the circuit before overheating leads to a fire. Keywords: RCD Bangladesh, Residual Current Device, RCCB, Electrical Safety Bangladesh, Electric Shock Protection, Household Wiring, Earth Leakage Protection, Home Electrical Safety, MCB vs RCD, Residential Electrical Protection.
